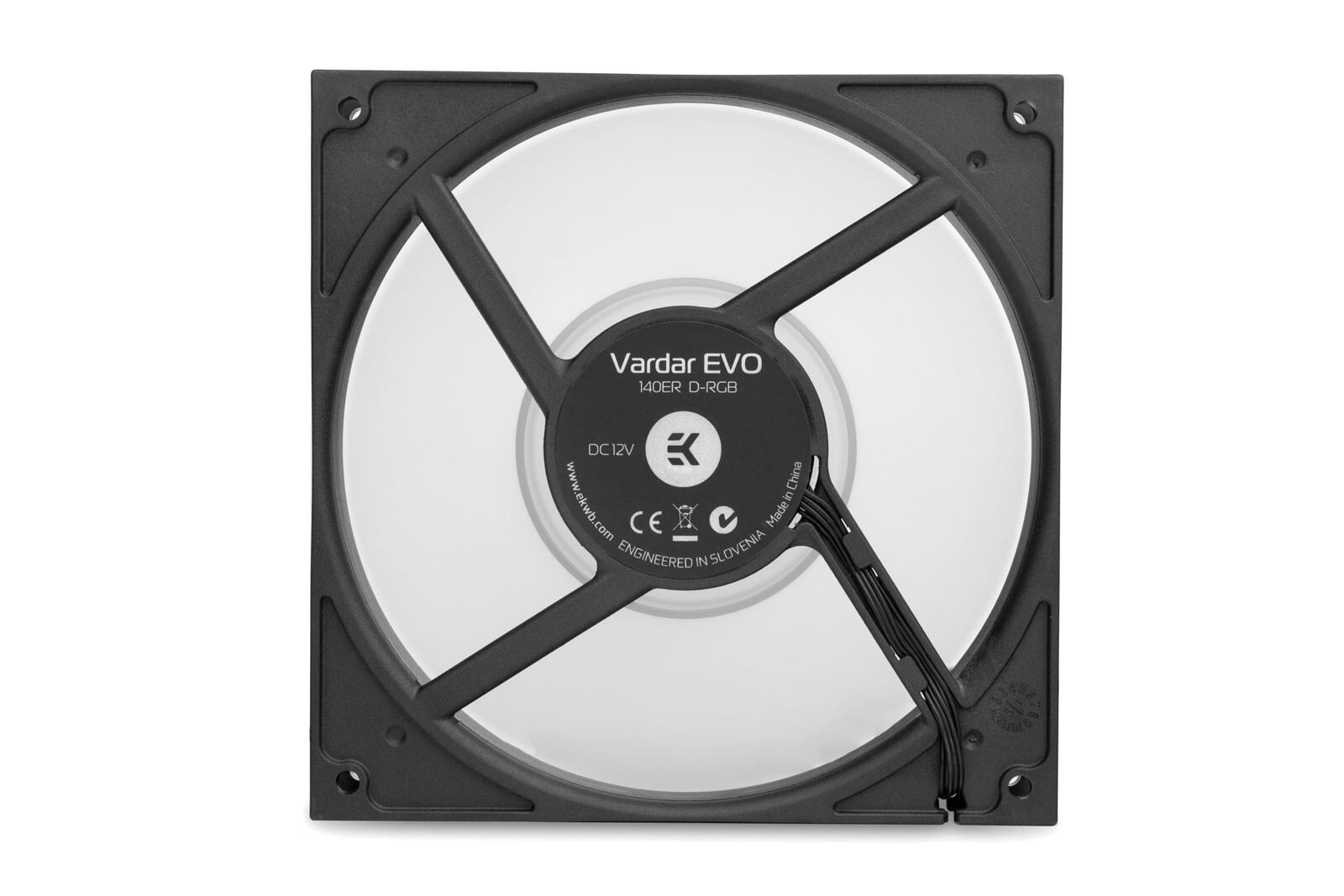

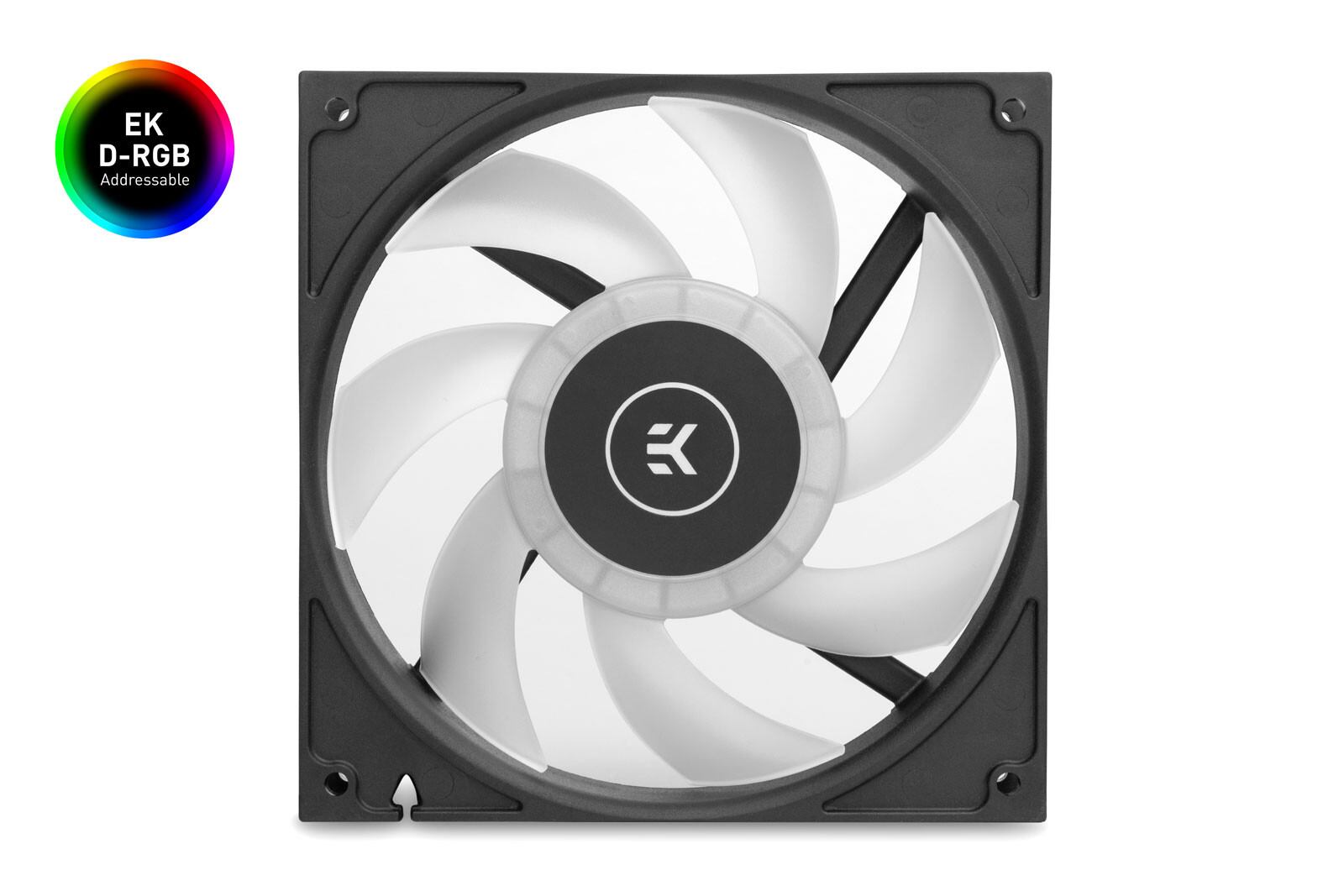

【3830046995469】 EK-Vardar EVO 140ER D-RGB (400-1600 rpm)

¥6,400 税込

SOLD OUT

別途送料がかかります。送料を確認する

¥5,000以上のご注文で国内送料が無料になります。

Mechanical and electrical specifications:

- Maximum speed: 1600 rpm (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 1.57W

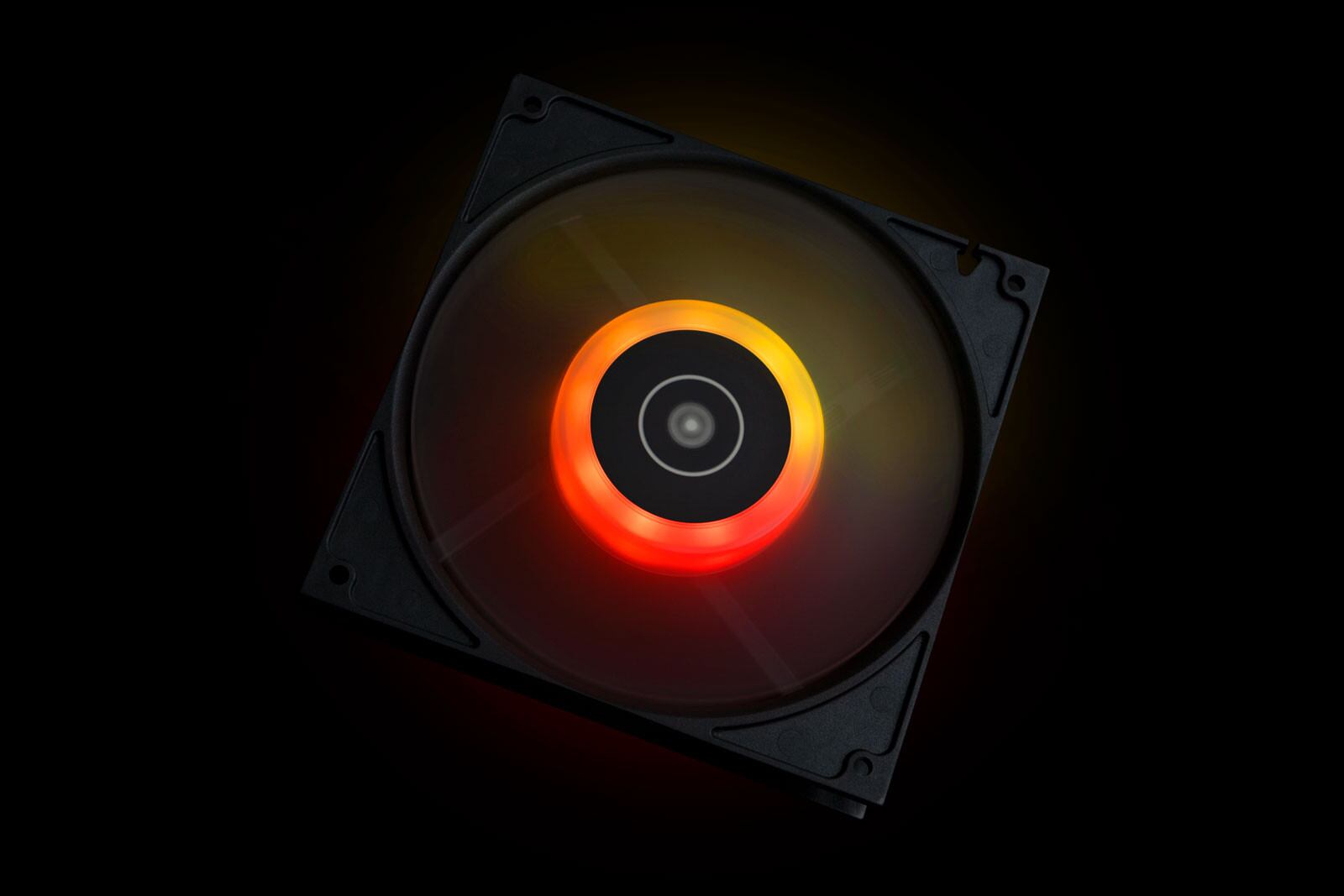

- LED Power Draw: ~2.4W (0.2A)
- PWM Duty Cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Shaft bearing: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 140 x 140 x 25 mm
- Black cable length: 50cm
- RGB cable length: 50cm
- RGB connector classic 3-pin (5V+, Data, Blocked, Ground)

Performance characteristics:

- Max Air Flow: 84 CFM = 143 m?/h
- Static Pressure: 1.90mm H2O = 18.6 Pa
- Sleeved cable length: 230 mm
- Noise Level: 31.6 dBA

The scope of delivery:
- EK-Vardar EVO 140ER D-RGB 140mm fan
- self-tapping screws (4 pcs)

Designed and engineered by EK Water Blocks in Slovenia - Europe
Made in China
